Shred-Tech ST-50 Dual Shaft Shredder

Performance

• Throughput: 1–3 Tons/Hour (material dependent)
• Drive Motors: Dual electric motors (standard)
• Motor Power: 40–60 HP total
• Voltage: 208V / 230V / 460V / 575V (3-Phase, 60Hz)
• Cutter Drive: Electric gear-reduced drive
• Control System: PLC with automatic knife reversal on overload

Cutting Chamber

• Chamber Sizes:
• 21" × 30" (533 × 762 mm)
• 21" × 40" (533 × 1,016 mm)
• 21" × 50" (533 × 1,270 mm)
• Knife Diameter: 10"
• Number of Shafts: 2
• Hex Shaft Size: 3-3/8" (86 mm)
• Distance Between Shafts: 7.5" (191 mm) center-to-center

Dimensions & Weight

• Length: 100"–120" (2,540–3,048 mm)
• Width: 45" (1,143 mm)
• Height: 107" (2,718 mm)
• Weight: 4,900–5,500 lbs (2,222–2,495 kg)
• Hopper Opening: Matches cutting chamber length
• Hopper Height: 44"
• Discharge Height: 40"

Standard Features

• Heat-treated alloy steel hex shafts
• Labyrinth bulkhead walls protecting bearings and seals
• Removable sectional cleaning fingers
• Heavy-duty welded steel construction

Common Applications

• E-Waste (hard drives, circuit boards)
• Plastics (purgings, bumpers, moldings, pipes)
• Wood (pallets, crate waste)
• Medical Waste (sharps, boxed waste)
• Product Destruction (prototypes, off-spec goods)
• General Waste (passenger tires, cardboard)

Additional Information

• Cutting Chamber Sizes: 21"×30", 21"×40", 21"×50"
• Number of Motors: 1 or 2

Equipped With

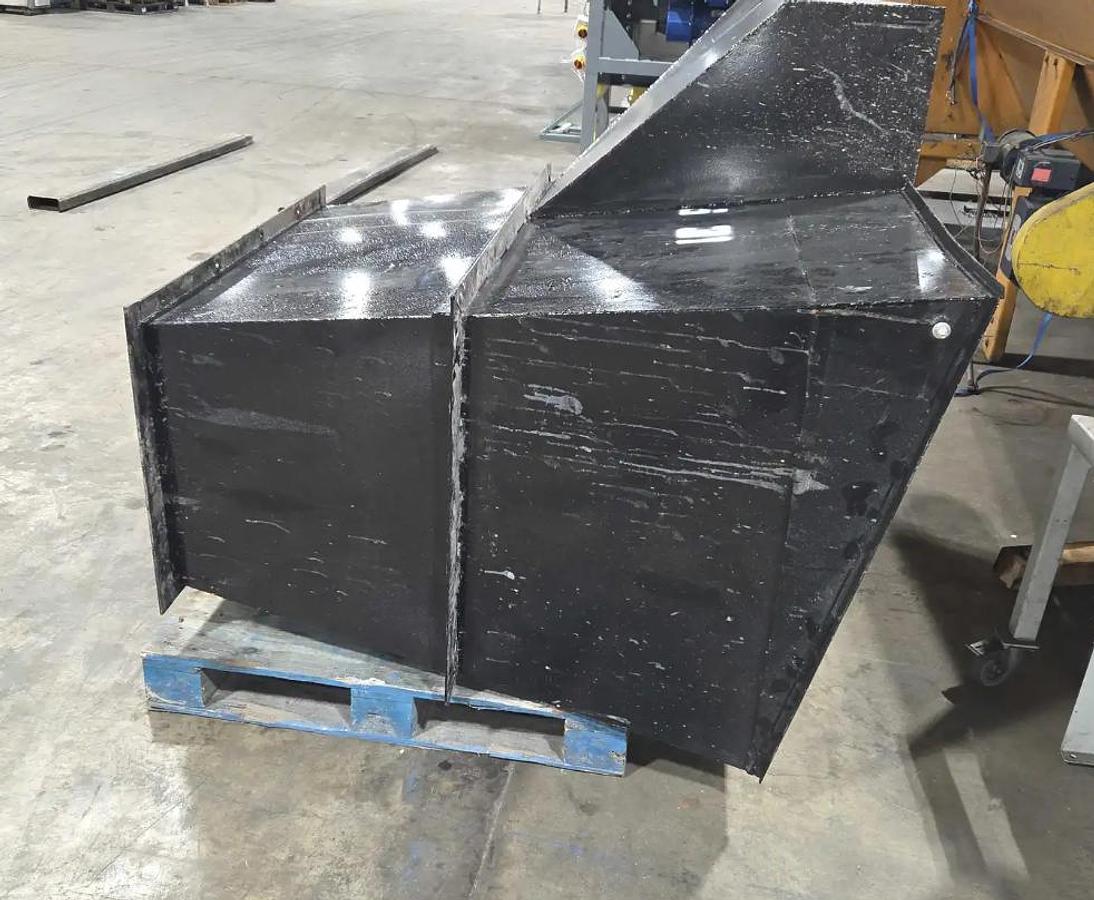

• Feed Hopper

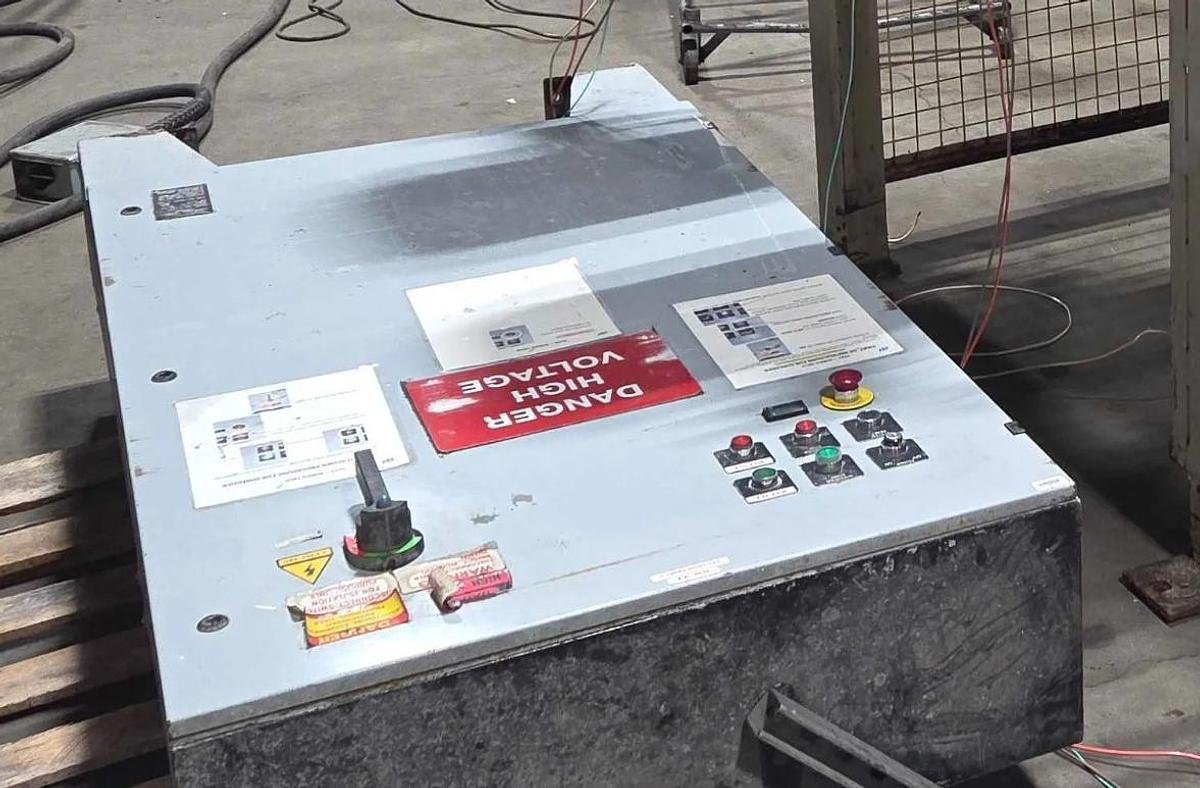

• Reversing Control Panel
